This scenario happens. And it's entirely preventable.
Temperature-sensitive pharmaceuticals now represent 32% of the global pharmaceutical market, valued at $384 billion according to IQVIA — a segment growing at 13% annually versus 6% for the broader market. Vaccines, insulin, biologics, and oncology therapies all fall into this category, and every one of them can degrade or become unsafe when exposed to incorrect temperatures.
This guide covers what pharmaceutical temperature monitoring is, the required storage ranges, key regulatory frameworks, device types, and actionable best practices — giving quality, logistics, and compliance teams a complete operational reference.
Key Takeaways
- Cold-chain medicines represent 32% of the pharmaceutical market and are growing twice as fast as the total market
- Temperature excursions can destroy product potency invisibly — appearance alone cannot confirm drug viability
- USP defines five storage categories from +20°C to +25°C (CRT) down to –25°C to –10°C (freezer), including deep-freeze categories below –40°C
- FDA, EU GDP, WHO, and USP create overlapping compliance obligations requiring calibrated, audit-ready monitoring records
- PDF/CSV data loggers — single-use and multi-use — provide audit-ready records without external software or manual data entry
What Is Pharmaceutical Temperature Monitoring?
Pharmaceutical temperature monitoring is the continuous tracking and documentation of temperature conditions that pharmaceutical products are exposed to — from manufacturing through storage, handling, and final delivery to the patient.
The instruments range from self-contained data loggers to networked real-time sensors. Regardless of format, each one serves the same purpose: generating a verifiable, tamper-evident record that a product stayed within its required temperature range throughout the supply chain.

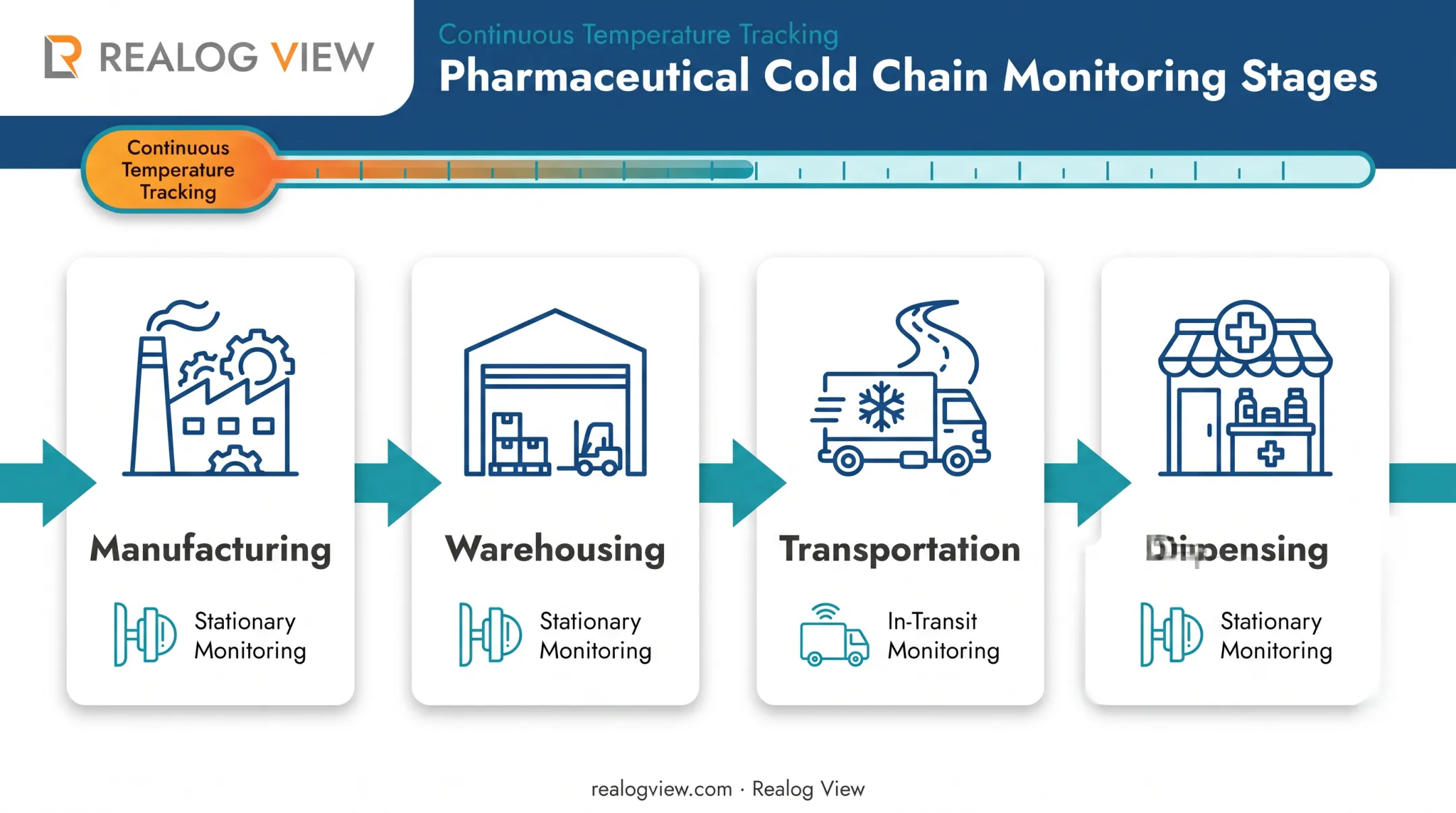

Stationary vs. In-Transit Monitoring
Pharmaceutical temperature monitoring splits into two categories, and a complete program requires both:
- Stationary monitoring covers fixed locations — warehouses, cold rooms, refrigerators, and freezers — with continuous automated surveillance and alarm systems
- In-transit monitoring covers the supply chain during transportation, using data loggers or real-time devices that travel with the shipment
Both categories serve a shared goal: giving regulators, distributors, and patients documented assurance that products were never exposed to conditions that could compromise their potency or safety.
Why Temperature Monitoring Matters in Pharmaceuticals
Preserving Product Efficacy and Patient Safety
Temperature-sensitive pharmaceuticals have a defined stability window. Exposure outside that range can trigger chemical degradation, protein denaturation, or physical separation — all of which reduce efficacy or introduce patient safety risks.
The critical difference from food spoilage: compromised vaccines and biologics often show no visible signs of damage. The CDC confirms that once vaccine potency is lost, it cannot be restored — and a single freezing event can permanently destroy the potency of liquid vaccines containing an adjuvant. Patients who receive compromised vaccines may remain inadequately protected and decline revaccination.
Monitoring records, not visual inspection, are what determine product usability.
Regulatory Compliance and Audit Readiness
Global regulatory agencies — including the FDA, EMA, and WHO — mandate temperature monitoring as a condition of pharmaceutical distribution. Non-compliance consequences include:
- Product recalls and inventory write-offs
- FDA Form 483 observations and warning letters
- License suspensions or import alerts
- Lasting reputational damage with customers and regulators
Temperature records must be tamper-proof, complete, and immediately retrievable during inspections.

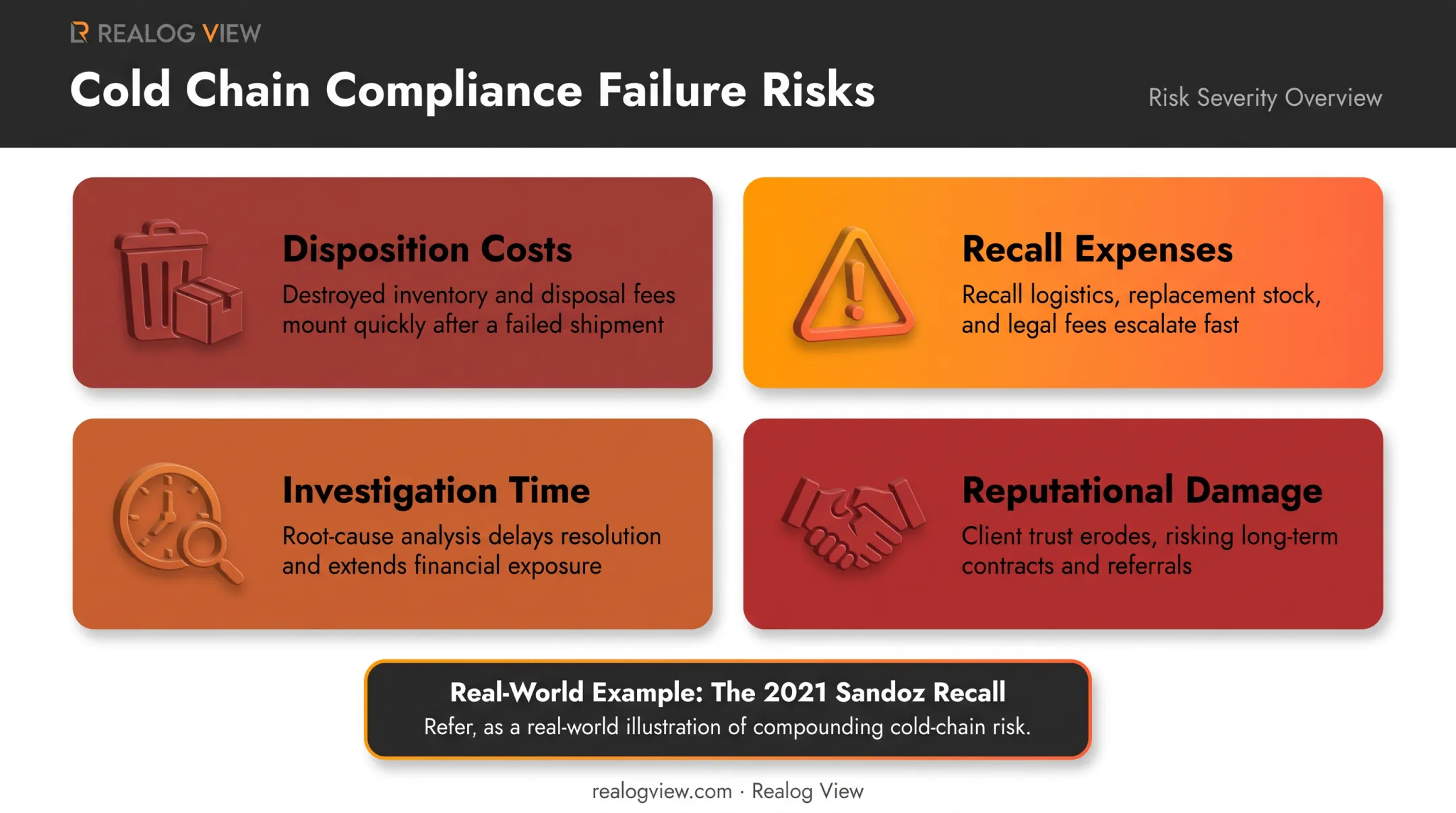

Reducing Financial Loss and Enabling Supply Chain Optimization
Temperature excursions force companies to quarantine and potentially discard affected batches, triggering direct product costs, quality investigation expenses, and resupply delays. The biopharmaceutical cold chain third-party logistics market is projected to grow from $30.59 billion in 2024 to $74.46 billion by 2033. At that scale, excursion losses are consequential at every tier of the supply chain.
Beyond compliance, temperature monitoring data enables targeted operational improvements:
- Identifies shipping lanes with recurring excursion patterns
- Pinpoints high-risk handling points across the distribution network
- Flags storage zones prone to temperature fluctuation
- Supports root cause analysis to reduce future excursion risk

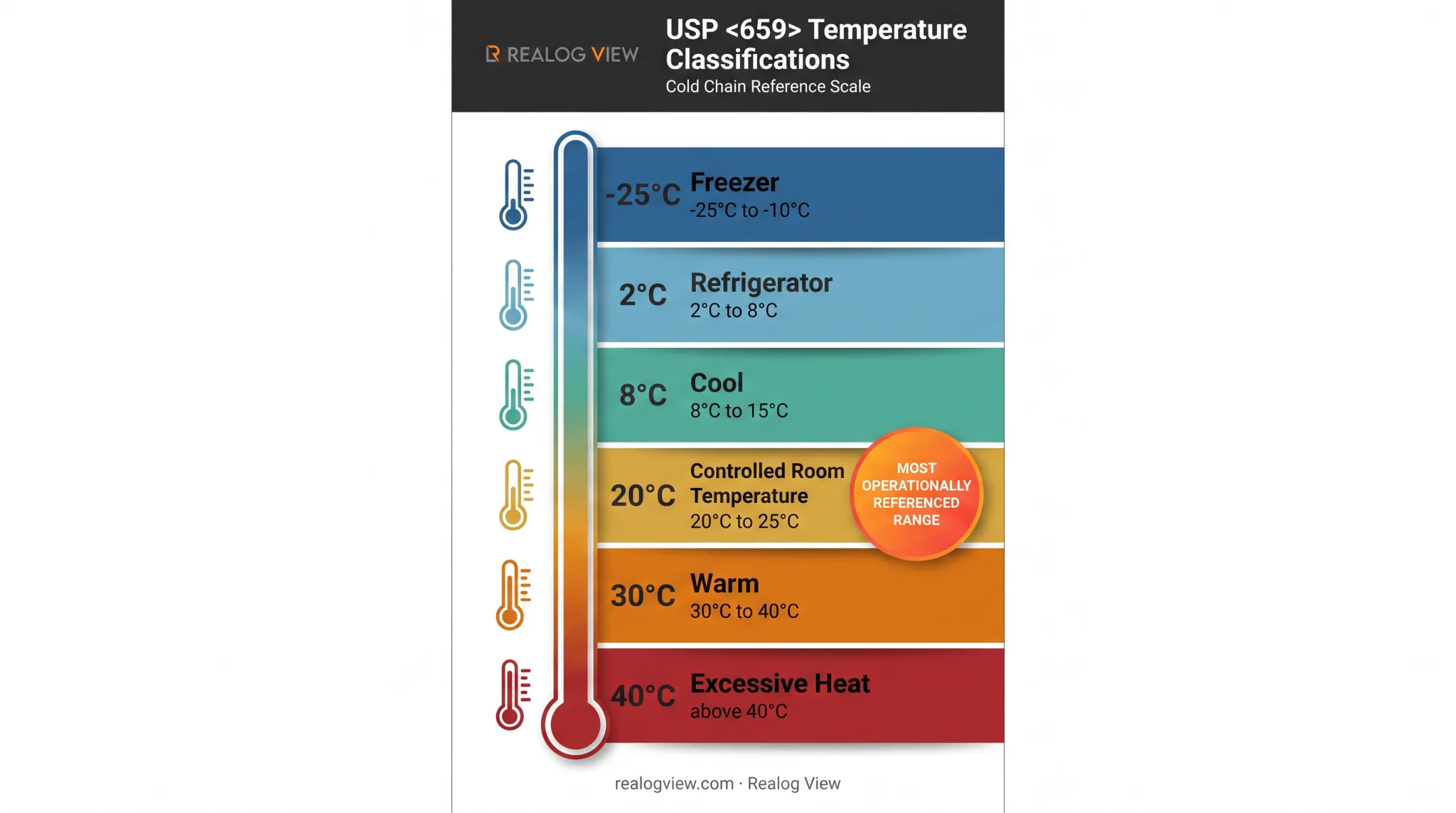

Key Pharmaceutical Temperature Ranges and Sensitive Products
Each pharmaceutical product has a manufacturer-defined label temperature range. Regulatory bodies have standardized storage condition categories — and product labeling always takes precedence over generic ranges.
Refrigerated (Cold) Storage: +2°C to +8°C
This is the most common cold chain requirement. Most vaccines (including flu vaccines), insulin, and many biologics must be maintained within +2°C to +8°C throughout storage and transit.
Even a brief excursion to freezing temperatures can permanently denature proteins in vaccines, rendering them ineffective without any visible change in appearance.
For standard refrigerated storage monitoring, devices with factory pre-set alarm thresholds at <2°C and >8°C, such as the Realogview TempTrail Display, eliminate manual configuration steps and reduce setup error risk.
Controlled Room Temperature (CRT): +20°C to +25°C
USP Chapter <659> defines Controlled Room Temperature as +20°C to +25°C. Excursions within +15°C to +30°C are permitted under defined conditions — subject to mean kinetic temperature calculations and labeling conditions — in pharmacies, hospitals, and during shipping. Many over-the-counter and general-use pharmaceutical products fall into this category.
Ultra-Cold and Frozen Storage: -20°C to -80°C
Ultra-cold requirements apply to highly temperature-sensitive biologics. The mRNA COVID-19 vaccines show how wide this range can be:
- Pfizer-BioNTech: Originally required –80°C to –60°C; the FDA later allowed –25°C to –15°C for up to two weeks as an alternative prior to mixing
- Moderna Spikevax: Requires –50°C to –15°C frozen; up to 60 days refrigerated at +2°C to +8°C
Specialized ultra-low temperature freezers and monitoring devices rated to at least –85°C are required for these applications. Realogview's TempTrail Glacial, with a –85°C lower limit, covers these ultra-cold vaccine storage requirements.
Freezer Storage: -25°C to -10°C
USP Chapter <659> defines standard freezer storage as –25°C to –10°C, with –18°C a commonly used set point. This range is distinct from ultra-cold storage, a distinction that affects both equipment selection and monitoring requirements.
Cryogenic Storage: Below -150°C
Cryogenic storage uses liquid nitrogen or cryogenic gases for biological research materials and advanced cell therapies requiring –150°C or colder. This falls outside the operational range of most pharmaceutical data loggers. Devices must be specifically rated for liquid nitrogen environments. The TempTrail Glacial's –85°C lower limit does not extend to true cryogenic territory.

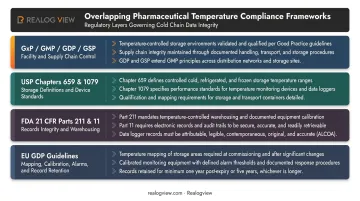

Regulatory Requirements for Pharmaceutical Temperature Monitoring
Pharmaceutical companies face overlapping regulatory frameworks — and which rules apply depends on their markets, product types, and where in the supply chain they operate.
GxP: GMP, GDP, and GSP
The GxP umbrella covers three directly relevant frameworks:
- GMP (Good Manufacturing Practices) governs temperature control in pharmaceutical manufacturing and storage facilities
- GDP (Good Distribution Practices) mandates calibrated monitoring devices, accurate temperature records, and validated monitoring systems throughout the supply chain
- GSP (Good Storage Practices) defines storage condition requirements for pharmaceutical products at fixed locations
GDP is particularly relevant for cold chain — it specifies that monitoring devices must be qualified, records must be retained, and systems must be validated before use.
USP Chapter <659> and USP Chapter <1079>
- USP <659> defines storage temperature categories and packaging requirements — the vocabulary of pharmaceutical storage conditions
- USP <1079> addresses risk mitigation for storage and transport
- USP <1079.3> covers the science and technology of monitoring devices — including calibration specifications and documentation requirements
FDA Requirements and Data Integrity
The FDA requires pharmaceutical companies to maintain accurate, unalterable temperature records and use validated monitoring systems under 21 CFR 211.142 (warehousing procedures) and 21 CFR 211.68 (automated equipment calibration and change controls).
21 CFR Part 11 governs electronic records and signatures in pharmaceutical environments. When electronic temperature records replace records required by FDA predicate rules, Part 11 applies — requiring tamper-evident, audit-trail-capable records. Applicability depends on how the records are used in the regulated process, not simply whether a device is marketed as "21 CFR Part 11 compliant."
For companies distributing in European markets, the EU GDP guidelines (2013/C 343/01) add a parallel compliance layer. Key requirements include:
- Initial temperature mapping of storage and transport environments
- Traceable calibration at least annually
- Tested alarms with documented performance
- Retained records available for inspection

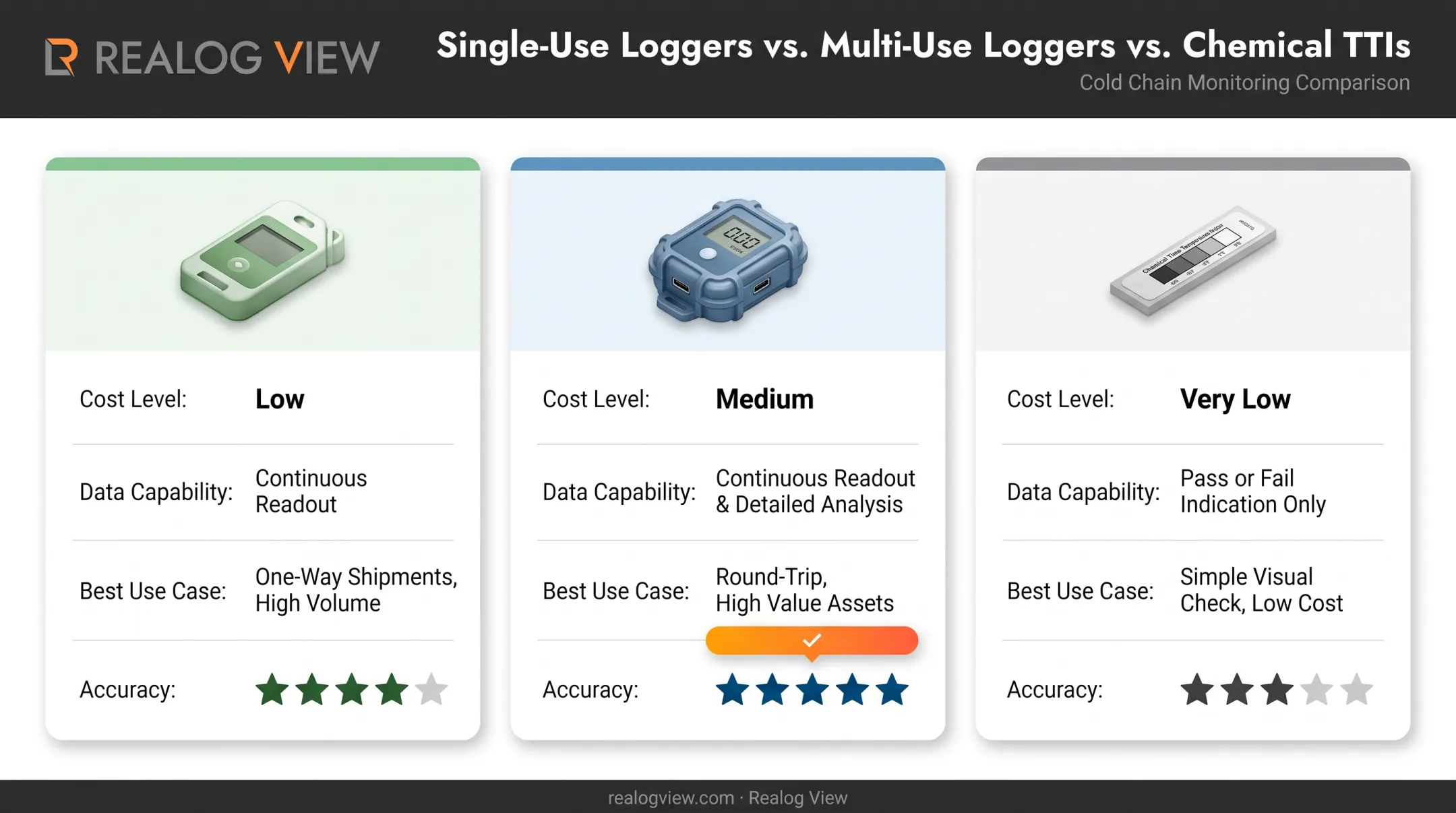

Types of Pharmaceutical Temperature Monitoring Devices
Passive (USB/PDF) Data Loggers
Passive data loggers are self-contained devices that record temperature at programmed intervals throughout a shipment or storage period. No real-time connectivity is required. The device travels with the product and generates a complete record for review upon delivery.
Modern pharmaceutical-grade data loggers — such as the Realogview TempTrail series — automatically generate tamper-proof PDF and CSV reports upon USB connection, without requiring external software or probes. Key selection criteria for pharmaceutical applications include:
- FDA 21 CFR Part 11 compliance for data integrity and audit-trail capability
- Pre-configured or user-configurable alarm thresholds matched to the product's required temperature range
- IP67 or IP68 waterproof ratings for hygiene-sensitive pharmaceutical environments
- DO-160G certification for durability under transport stress conditions
- Large LCD display options for instant temperature and alarm visibility at receiving
For ultra-cold applications down to –85°C (such as mRNA vaccine shipments on dry ice), the TempTrail Glacial series extends passive logger capability to extreme cold environments while maintaining the same compliance architecture.
Real-Time IoT Temperature Monitors
Real-time monitors use cellular connectivity to transmit live temperature and location data to cloud platforms during transit — delivering immediate alerts that allow teams to intervene before an excursion becomes a loss.
This matters most for:
- High-value shipments where product loss would be financially or clinically significant
- Known high-risk shipping lanes with documented excursion history
- Long international routes where mid-transit corrections are actually possible
Per-use costs run higher than passive loggers. For most standard pharmaceutical shipments, passive loggers paired with a solid excursion response protocol deliver the same regulatory value at lower cost.
Stationary Monitoring Systems
Continuous stationary monitoring systems serve warehouses, cold rooms, and refrigerators/freezers with ongoing automated surveillance. Required capabilities for pharmaceutical compliance include:
- Programmable alarm thresholds with notification escalation
- Remote dashboard access for real-time status visibility
- Detailed audit logs for regulatory inspections
- Validated placement based on temperature mapping study results
Multi-use data loggers with user-configurable parameters — such as the TempTrail Display Model M or the TempTrail Humidity & Display Model M — can serve fixed storage monitoring roles while generating the same automatic PDF/CSV records required for regulatory documentation.
Best Practices for Pharmaceutical Temperature Monitoring
Conduct Temperature Mapping Studies
Temperature mapping measures temperature distribution across a storage facility or transport container over a defined period. It identifies hotspots, cold zones, and areas of fluctuation — directly informing where sensors should be placed.
WHO guidance calls for:
- Initial mapping before a facility is commissioned
- Periodic remapping (for example, every three years)
- Remapping after significant facility changes or unexplained variability
- Two seasonal studies where temperature variation justifies it
Any material change to a storage space or HVAC system should trigger reassessment — mapping is an ongoing obligation, not a one-time checkbox.
Pre-Condition Equipment and Packaging Before Loading
Pre-conditioning is often overlooked — and one of the most common causes of avoidable excursions. Before loading pharmaceutical products:
- Bring the refrigerated vehicle's cargo area to the required temperature range before opening for loading
- Pre-condition thermal packaging (insulated shippers, gel packs) per validated protocols
- Minimize door open time during loading to prevent warm air infiltration
- Never load room-temperature product directly into a container that hasn't reached operating temperature
Loading warm product into a non-pre-conditioned container can begin an excursion before the shipment leaves the facility.
Ensure Automatic, Compliant Data Recording and Reporting
Physical preparation only solves half the problem. Pharmaceutical monitoring programs also depend on devices that generate complete, tamper-proof temperature records without manual intervention. Data loggers that automatically produce PDF and CSV reports — no external software required — offer concrete compliance and operational benefits:
- Eliminates human error in report generation
- Simplifies chain-of-custody documentation at each handoff point
- Accelerates product release decisions at distribution stages
- Ensures records are immediately available for regulatory inspections
- Reduces IT validation burden, since no proprietary platform requires its own 21 CFR Part 11 software validation
Develop and Test an Emergency Response Plan
An undocumented response is not a response. Pharmaceutical companies should maintain:
- Documented protocols for power failures, equipment malfunctions, and excursion events
- Backup power sources or alternative storage sites with confirmed capacity
- Clear escalation procedures defining who is notified and within what timeframe
- Defined quarantine criteria specifying when product is segregated pending investigation
- Disposition decision frameworks based on the product's stability profile and the excursion's nature
The CDC's recommended excursion sequence — notify, label "DO NOT USE," segregate, document, contact manufacturer for viability guidance, record disposition — should be formalized into site SOPs and tested through drills.
Frequently Asked Questions
What is the standard temperature range for pharmaceutical refrigerator storage?
Refrigerated pharmaceutical storage must be maintained between +2°C and +8°C (+36°F to +46°F) per USP Chapter <659> and FDA product labeling requirements. This is the most common cold chain specification for vaccines, insulin, and many biologics.
What regulations govern pharmaceutical temperature monitoring in the United States?
Primary US frameworks include FDA regulations under 21 CFR Parts 211 and 11, USP Chapters <659> and <1079>, and GMP/GDP guidelines. FDA 21 CFR Part 11 applies to electronic records used in regulated pharmaceutical processes. State boards of pharmacy may impose additional requirements.

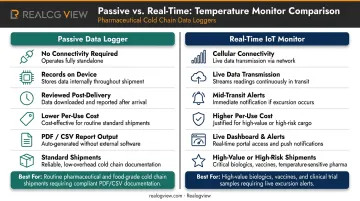

What is the difference between a passive data logger and a real-time temperature monitor?
Passive data loggers record temperature data throughout a shipment for review after delivery. Real-time monitors transmit live data via cellular connectivity during transit, enabling immediate alerts and potential mid-transit interventions, though at a higher per-use cost.
How often should pharmaceutical temperature monitoring equipment be calibrated?
WHO guidance calls for calibration against a certified, traceable reference at least annually, unless otherwise justified. EU GDP guidelines specify the same minimum. Your specific regulatory framework or company SOPs may require more frequent intervals.
What should be done if a pharmaceutical product experiences a temperature excursion?
Quarantine the affected product immediately, label it "DO NOT USE," and document the full time-temperature record. Initiate a quality investigation, contact the manufacturer for stability guidance, and record the final disposition decision — whether release, rejection, or further stability testing.
Do pharmaceutical temperature data loggers need to be FDA 21 CFR Part 11 compliant?
When electronic temperature records serve as regulated pharmaceutical records, the data logger system must satisfy 21 CFR Part 11 requirements for data integrity, tamper-evident records, and audit trails. Treat compliance as a verifiable technical requirement, not a marketing label — confirm that the device's electronic record architecture meets the regulation for your specific use case.
