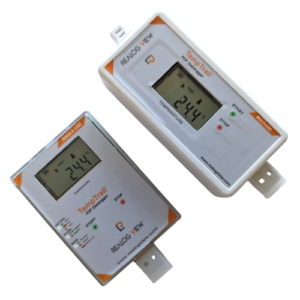

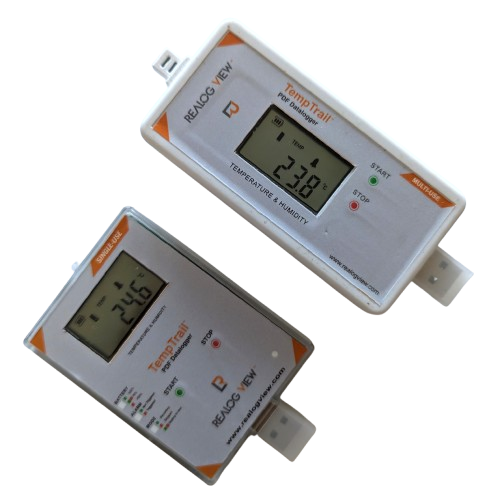

TempTrailTM Display - Single/Multi-use PDF Temperature Datalogger
Key features:
- Single/Multi-use temperature PDF datalogger with Display
- Temperature range: -30oC~+70oC/-22oF~+158oF
- 32,000 data points.
- Clear alarm violation indication via the large display
- Automatically generates PDF report & CSV file without any external software
- Ideal for transportation of perishable goods and facilities monitoring
Model Comparison:
| Specification | TempTrail™ Display – S | TempTrail™ Display – M |
| Recording type | Single-use | Multi-use |
| Data points | 32,000 | 32,000 |
| Alarms | Pre-set | User configurable |
| Logging interval | Pre-set – Up to 220 days(10 mins logging interval) | User configurable |
| Usage | Ideal for produce, drugs, vaccine transportation | Ideal for warehouse monitoring |
Specification:
| Specification | TempTrail™ Display – S | TempTrail™ Display – M |
| Recording type | Single-use | Multi-use |
| Temperature range | -30oC to +70oC / -22oF to 158oF | |
| Temperature accuracy | ± 0.2oC/oF | |
| Resolution | 0.1oC | |
| Temperature unit | oC/oF | |
| Data storage1 | 32,000 | |
| LCD Display | Yes | |
| Shelf life battery | 12 months | 18 months |
| Recording interval | 10 mins(Can be modified upon request) | User configurable |
| Recording duration | Up to 220 days (with standard 10 mins logging interval) | Based on user configuration |
| Start delay2 | 30 mins | User configurable |
| Temperature alarm range3 | >8oC/46.4oF or < 2oC/35.6oF | User configurable |
| Logging mode | Stop when full | |
| Alarm type | The Alarm LED turns red or the bell icon is displayed on the LCD when the temperature exceeds the range. | The bell icon is displayed on the LCD when the temperature exceeds the range. |
| Data interface | USB2.0 | |
| Report generation | PDF report & CSV file | |
| Power supply | CR2032 battery | ½ AA battery |
| Waterproof level | IP67(with seal bag) | IP67 casing |
| Net weight | 40 gm/1.4 oz | |
| Dimensions (in mm) | 92mm(L) x 55mm(W) x 8mm(H) | 110mm(L) x 40mm(W) x 10mm(H) |
| Minimum system requirements | Windows® PC w/ Windows® 7 or higher; Adobe® Reader 9.0 or higher | Windows® PC w/ Windows® 7 or higher; Adobe® Reader 9.0 or higher |
1 Maximum 32,000 data points. The recording capacity varies based on different recording periods.
2 Start delay: Once the datalogger is activated, it enters a standby mode, patiently waiting for the predetermined delay time to expire before initiating the recording process.
3 Alarm Range: The single-use temperature datalogger comes with a preset upper limit and a lower limit for the temperature threshold.
